Learn how to tone map with Photoshop CS3 to create beautiful high dynamic range (HDR) photos. The final result is exceedingly better than Photoshop's local adaptation and similar to Photomatix's tone mapping.

HDR Tone Mapping

What is Tone Mapping?

Tone mapping compresses the tonal values of a high dynamic range image into a lower one. The result is an image with more visible details that would not be seen on an image with lower dynamic range.

How does Tone Mapping Work?

Tone mapping works by merging multiple images with different exposures into one image. Each image contains details not visible in another. To take these images, use the Automatic Exposure Bracketing feature on your camera to capture three images of different exposures. You may need to place your camera on a tripod to prevent camera movement.

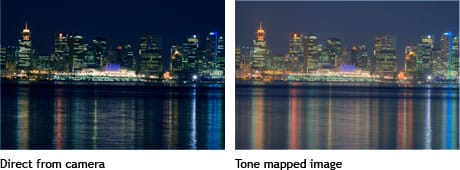

Three 8-bit images with different exposures tone mapped into a single 8-bit image with greater detail.

Tone Mapping Methods

Most common methods :

  • Using Adobe Photoshop to merge the images into a HDR file then converting the image to an 8-bit file using local adaptation.
  • Using HDRsoft Photomatix to create a HDR file then tone mapping the HDR file into a 8-bit file.

The latter usually produces better results that Adobe Photoshop isn't capable of producing. If you don't have Photomatix, here's a Photoshop solution for tone mapping:

Layered Tone Mapping with Photoshop

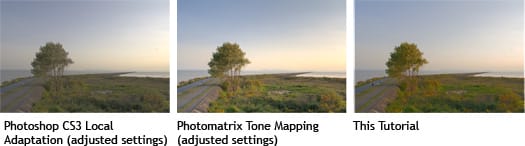

Although Photomatix produces amazing results and Photoshop's local adaptation methods can create satisfactory results, none of them can produce a layered file. In this Photoshop CS3 tutorial, you'll learn how to tone map three exposures with results better than Photoshop CS3's local adaptation and similar to Photomatix tone mapping. In addition, the document will have seperate layer allowing advance Photoshop users to tweak their image with greater control.

The Photoshop HDR Tone Mapping Tutorial

Before We Begin

Download the following three images to your hard drive (Right mouse click> Save As). You will be using these images to follow the tutorial.

Step 1

First, we'll need to load the three images into Photoshop. We will use the Load Files into Stack feature for this. To access this, select the File> Scripts menu and choose Load Files into Stack.

The Load Layers window should appear. In the Load Layers window, browse for the three images you've downloaded and add them to the list. Checkmark the "Attempt to Automatically align Source Images. With this checked, Photoshop CS3 will try to align the images.

Step 2

After waiting for Photoshop CS3 to process the images, you should end up with a new document with three layers. Make sure that the neutral.jpg layer is the bottom layer and the over.jpg layer is the top layer.

Step 3

Select the over.jpg layer and add a layer mask by opening the Layer> Add Layer Mask menu and selecting Reveal All.

Step 4

Open the Image menu and select Apply Image. In the Apply Image window, checkmark Invert and click OK.

The over.jpg layer should now be an invert of the image.

Step 5

Select the under.jpg layer and add a layer mask by opening the Layer> Add Layer Mask menu and selecting Reveal All.

Step 6

Open the Image menu and select Apply Image. In the Apply Image window, select the layer under.jpg, uncheck Invert, then click OK.

Step 7

We're done tone mapping and now we have the three different exposures on their own layers with their own layer mask.

Final Results

Roll over the image below to see a before and after effect of tone mapping.

HDR Photoshop

Removing Ghostings

If you look closely, you may notice some ghostings due to moving objects when the image was taken.

To remove this, select the over.jpg layer and paint the area in the layer mask white.

Analyzing the Results

How does this process compare with HDRSoft Photomatix tone mapping? In this section, we'll analyze the results from Photoshop CS3 and Photomatix and compare the differences.

First, we'll begin with this tone mapped cityscape of Vancouver, BC that was toned mapped using both Photomatix and Photoshop CS3.

At a glance, they both look very similar. Photomatrix seems to produce slightly more saturated colors.


The image produced with Photomatrix is slightly softer than the original image.
The results from this tutorial produces sharp results. However, there are noticeable outlines around bright edges.

Color & Noise

Color results from Photomatrix are excellent. The colors are natural and smooth. Noise is slightly visible and hot pixel are visible.
Photoshop produces less saturated color and color detail is lacking. There is visibally less noise and no hot pixel compared to results from Photomatrix.

Artifacts - Changing Color

The sails in the images below are lit by a color chaging light that fades from one color to another.

Photomatrix had troubles dealing with the changing color.
Photoshop was able to handle the effect and produced smooth results.

Artifacts - Flares

Photomatrix produced artifacts around some flares.
Photoshop produced slightly less artifacts than Photomatrix.

Pros and Cons

The two methods of tone mapping are similar, but they share their own pros and cons. Photomatix does a better job for most of the time. We recommend using Photomatix tone mapping first. If it doesn't produce good results, use try using this Photoshop tutorial instead. While the image generated by Photomatix has more noise and isn't as sharp, these can be fixed in Photoshop aftewards.

Photomatix Tone Mapping

Photoshop CS3 (This tutorial)


  • Simple process and easy adjustments
  • Excellent color results
  • Smooth tones
  • Exposures in their own seperate and editable layer
  • Good sharpness
  • Lower level of noise compared to original
  • Most hot pixels are removed
  • Less artifacts


  • Slightly more noise than original
  • Visible hot pixels
  • More artifacts
  • More steps required
  • Tweaking the results require advance Photoshop knowledge
  • Abnormal outlines around bright edges
  • Less saturated colors

Update: Fixed the "Photomatix" spelling mistake. Thanks for the notice in the comments. :)
