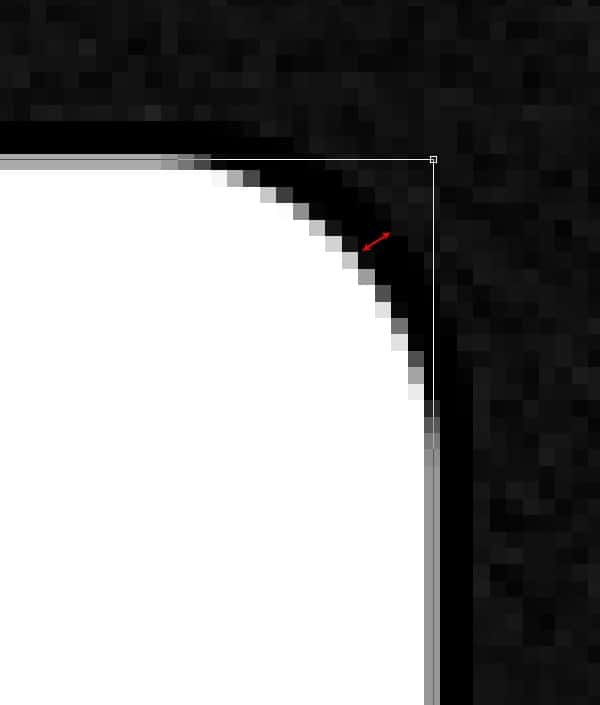

55

Step 56

Recale the white shape’s selection (Ctrl+leftclick on layer’s thumbnail).

56

Go to Select > Modify > Contract and contract it by around 6 pixels.

56a

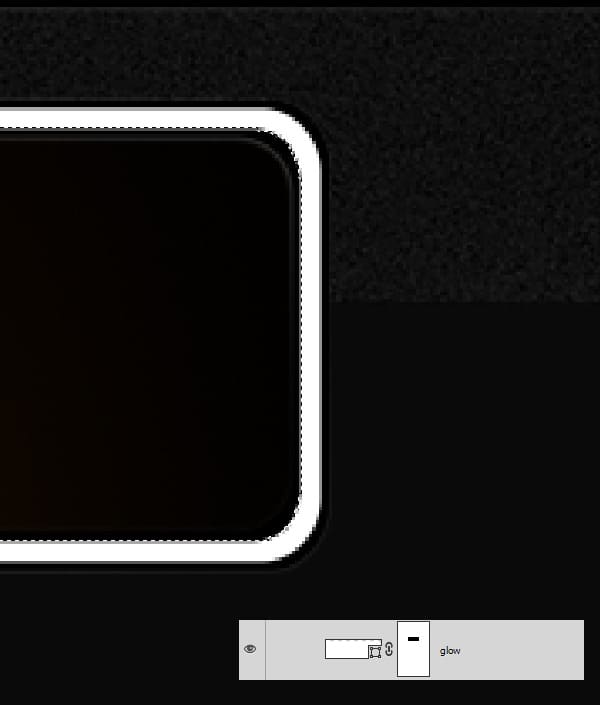

Make sure you have the white shape selected, then in Layers Palette click on add layer mask button.

56b

Step 57

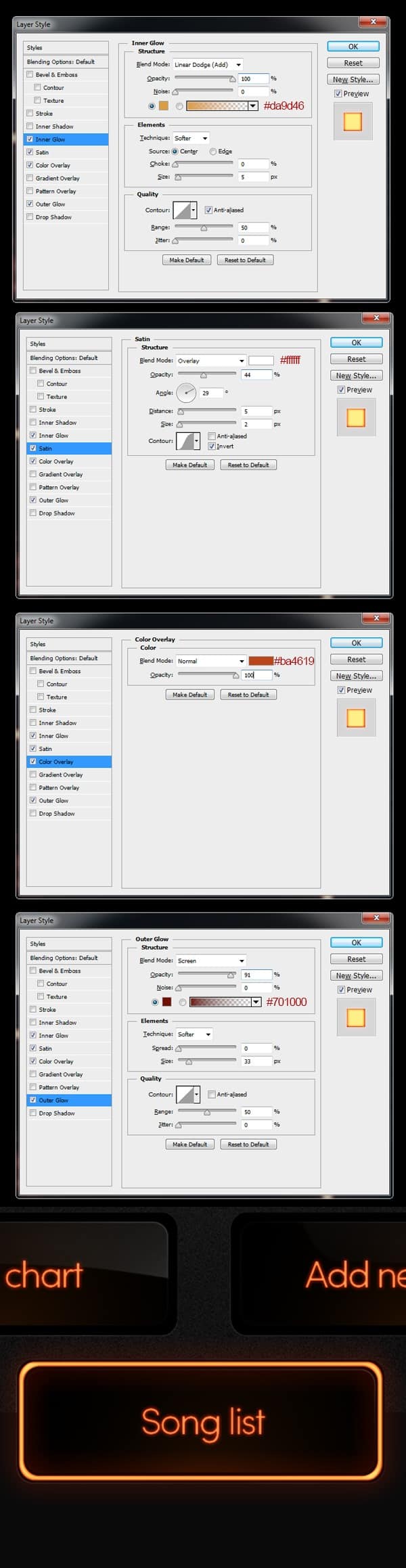

Next go to the white shape layer’s Blending Options and set it as shown below.

57

Step 58

Rightclick on that glow layer and select Copy Layer Styles.

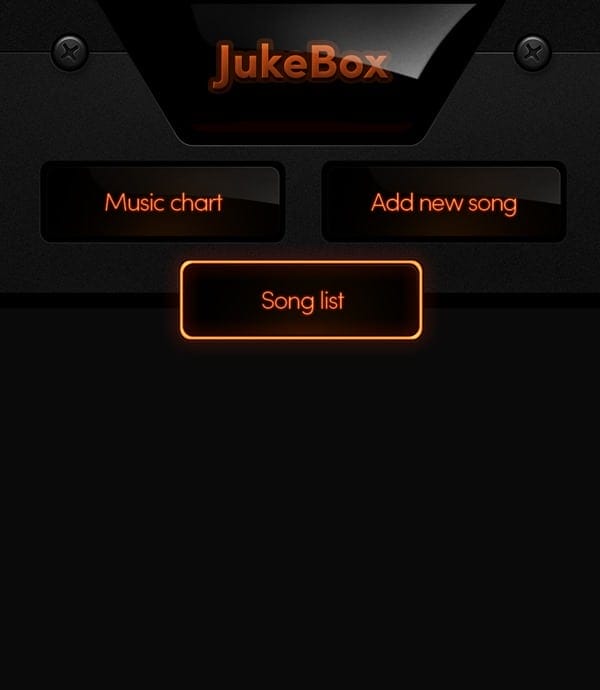

Next grab Rectangle Tool (U) and draw a thick horizontal black line under the Song list button.

58

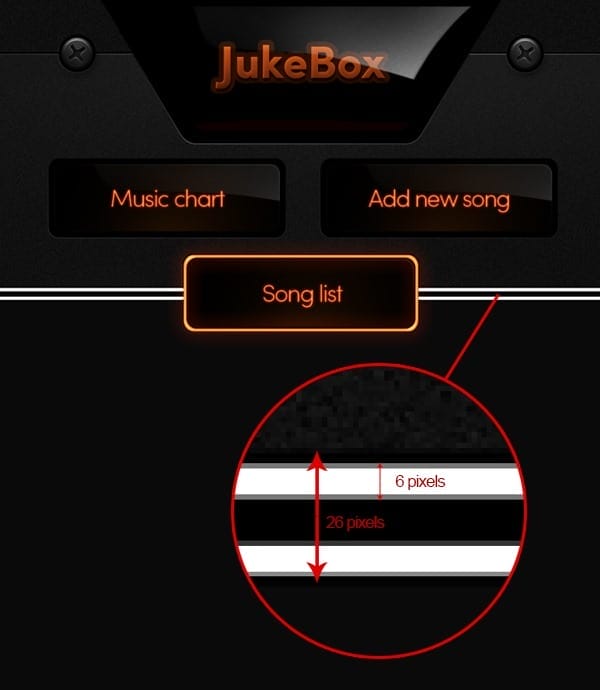

Zoom up the black stripe and create two white horizontal lines inside, around 6 pixels width each.

58a

Step 59

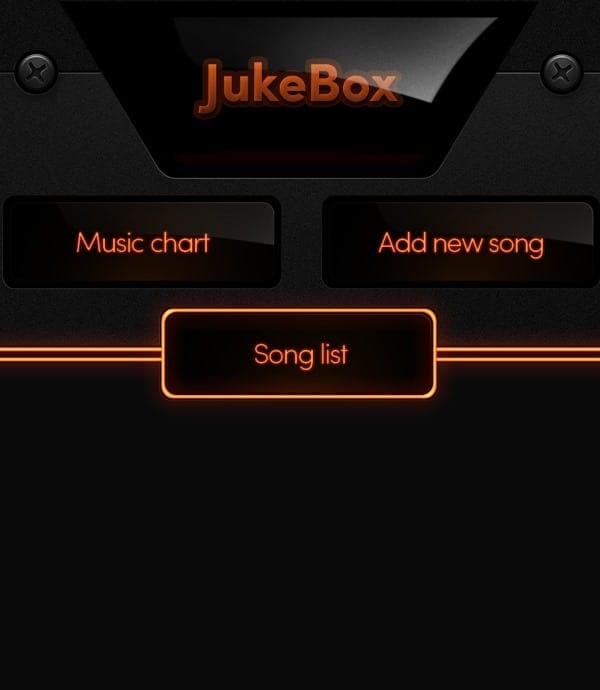

Now rightclick on each of those lines and select Paste Layer Styles.

59

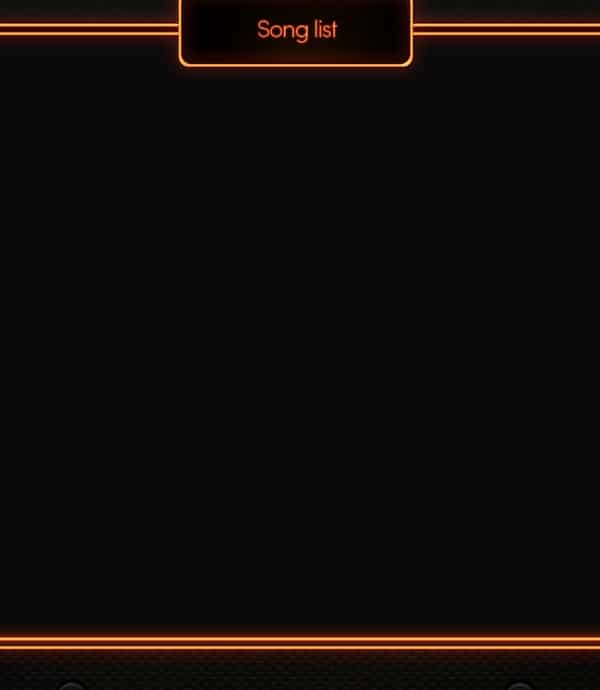

Duplicate (Ctrl+J) all these 3 stipes (1 black, 2 glowing ones) and postion it below, in the end of the background shape layer.

59a

Step 60

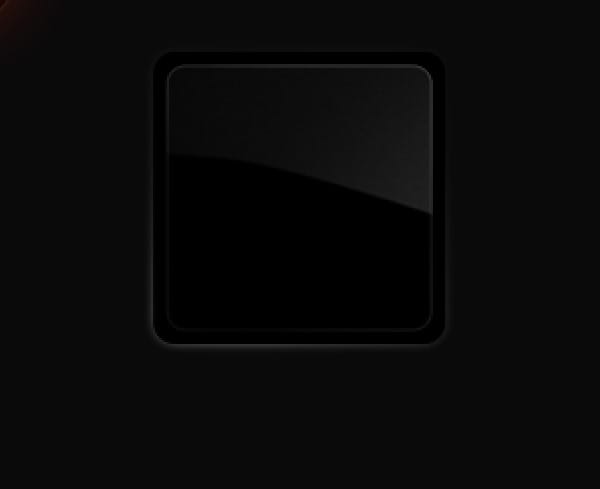

Now let’s fill up the content. First we’re gonna make a button alike element that’s meant for displaying graphics of current track. So this is basically the same thing as creating button. The only thing that’s different is that the shape is more square right now. Simply refer to step 20, 21, 22 and follow previous instructions on how to create the button. Just ditch the part when we used color to fill the center, do it black and white.

60

Step 61

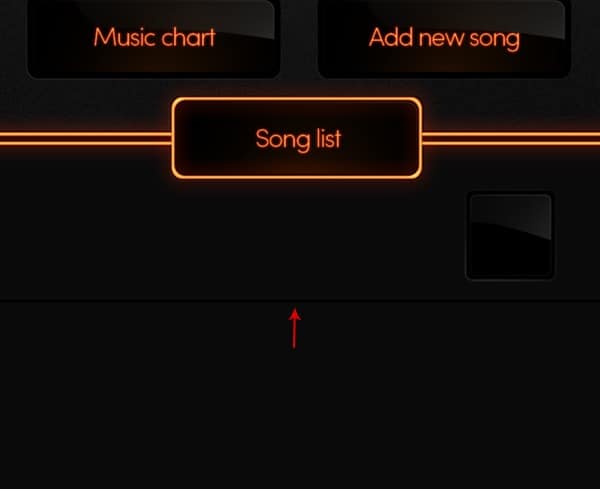

As being said in the beginning, most of the stuff here works on repetitions. Now we need to add some some gaps to the solid shape in the background. To do this use Rectangle Tool (U) and draw a tiny 2-3 pixel black horizontal line (shape layer).

61

Step 62

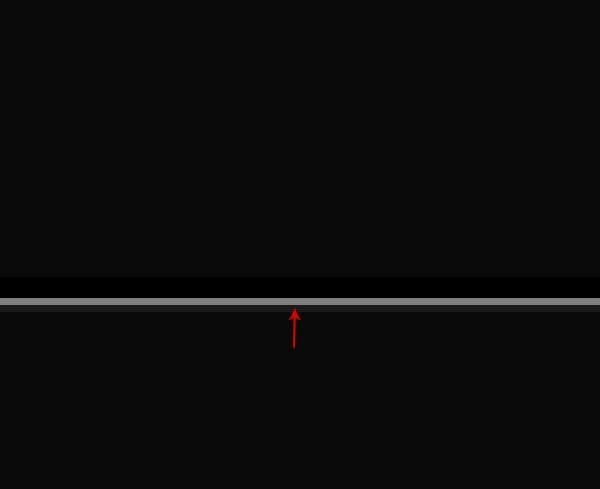

Now repeat the same thing, but this time add 1 pixel horizontal grey line. Use Line Tool (U) or Rectangle Tool (U). Move that line downwards so it’s sticks to the black shape edge.

The view below is zoomed.

62

Step 63

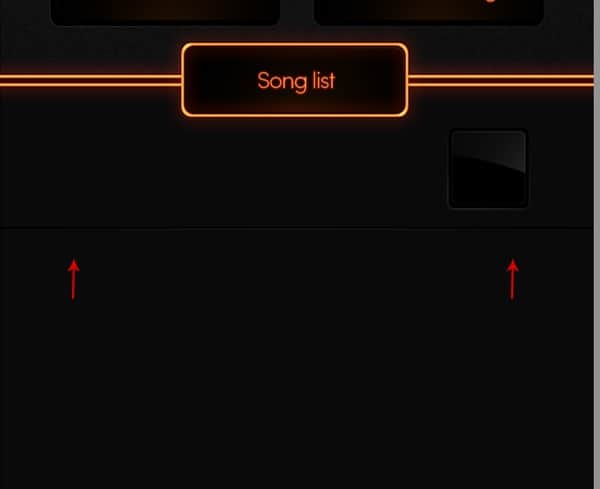

Add a layer mask to this grey line and use soft black brash to erase the line fro mthe sides a bit.

63

Step 64

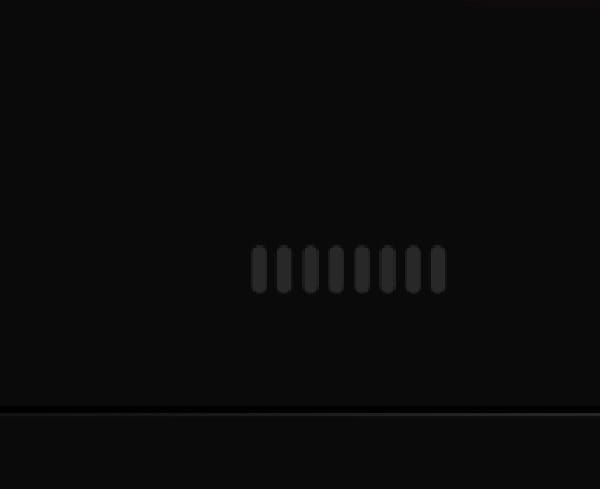

Next use Rounded Rectangle Tool (U) and draw 1 rounded stripe shape. Duplicate it 7 times, so you get 8 of them. Place them next to each other and merge them (Ctrl+E). Make sure they’re all dark grey.

64

Now duplicate this merged shape layer, change its color to white and hit Ctrl+Alt+G for clipping mask, so the white shape cannot go out of grey shape bounds. Now use Path Selection Tool (A) and move each shape so they make a various movement (move one down, one up, and so on).
